Azimuth Stern Drive Tugboat Automations Renovation process to achieve Our company’s slogan: “Innovations for Renovations”.



Azimuth Stern Drive Tugboat Automations Renovation process performed Under Siemens brand (1217c marine-approved type plc based); ingenuity employed.

A well-known automations software which released as the RCS -ZMZ-002577 ( Azimuth-Thrusters-Control series) remote control system (produced by R.A.Sh.B.M. company).

The “ZMZ-0025xx” series software is tailor-made to control the SCHOTTEL brand azimuth thrusters to enhance maneuverability over the ASD tugboat.

The renovation & retrofit carried out over vessel to install an intelligent & cutting-edge-technology , implemented as RCS-ZMZ-002576-79 under the SIEMENS platform.

• RASHBM

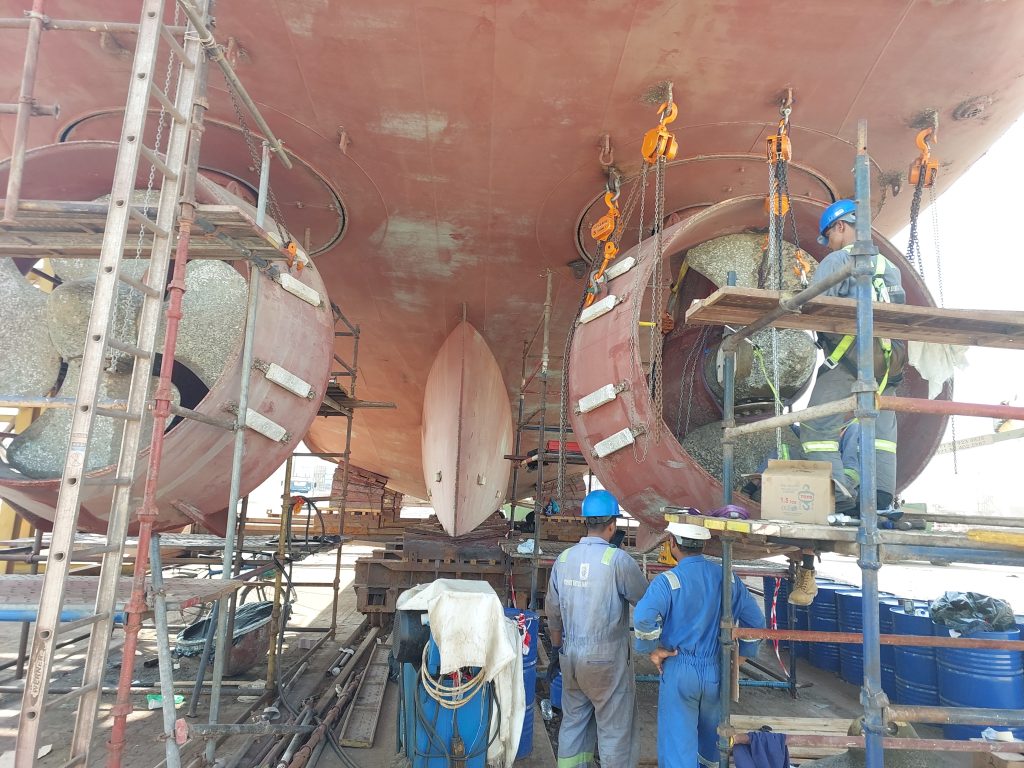

ASD Tugboat Automations Renovation considering the PORT & STBD sides SCHOTTEL brand Azimuth Thrusters fully overhauled.

The SCHOTTEL azimuth thrusters relevant seals replaced & hydraulic system tested to make sure that internal-leakage for the actuator minimized.

The Electro-Hydraulic system connected to (RCS-ZMZ-002576-79) & response through the hydraulic-systems to move the pitch of the propeller found fantastically improved.

• RASHBM

To perform the Azimuth Stern Drive Tugboat Automations Renovation process, one of the most important & influential part of the control system, definitely is the amplifier card to drive the hydraulic-systems actuators .

The HAWE electro-hydraulic system’s amplifier card hired to perform & participate its imperative role to safely control the pitch and acting as an intelligent-automation servo actuator amplifier system.
The Rexroth amplifier cards hired to trigger the azimuth-thruster ‘s steering system in the full round of the 360 degree.
Both for the azimuth & pitch control systems we’ve manipulated the closed-loop-control by means of the relevant feedbacks.

The open-loop-control has been established to control the engines speed via the relevant E/P converters.

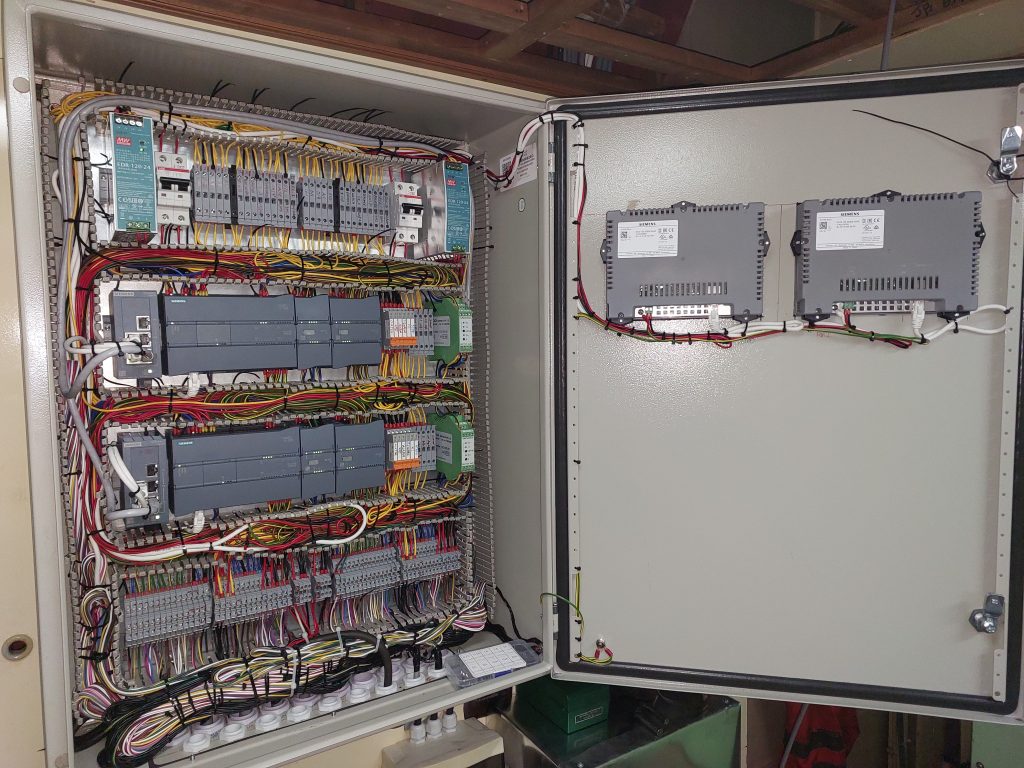

An ingenuity employed software (RCS-ZMZ-002576-79) implemented over a cutting-edge hardware technology as the SIEMENS platform.

The characteristics tests & reports over the performance monitoring system of ASD Tugboat Automations Renovation process, witnessed.

A ground breaking German technology improved response time & a hassle-free operation provided for both the CPP & azimuth systems.

An imperative part to manipulate the #closedloopcontrol is to establish a cutting-edge #feedback technology for the 360 degree steering system full round over the Azimuth Stern Drive Automations.

To establish an strong & robust feedback technologies for the Azimuth Stern Drive Automations, the Midori precision positioners in line with the buffer-amplifiers are our chosen technology.

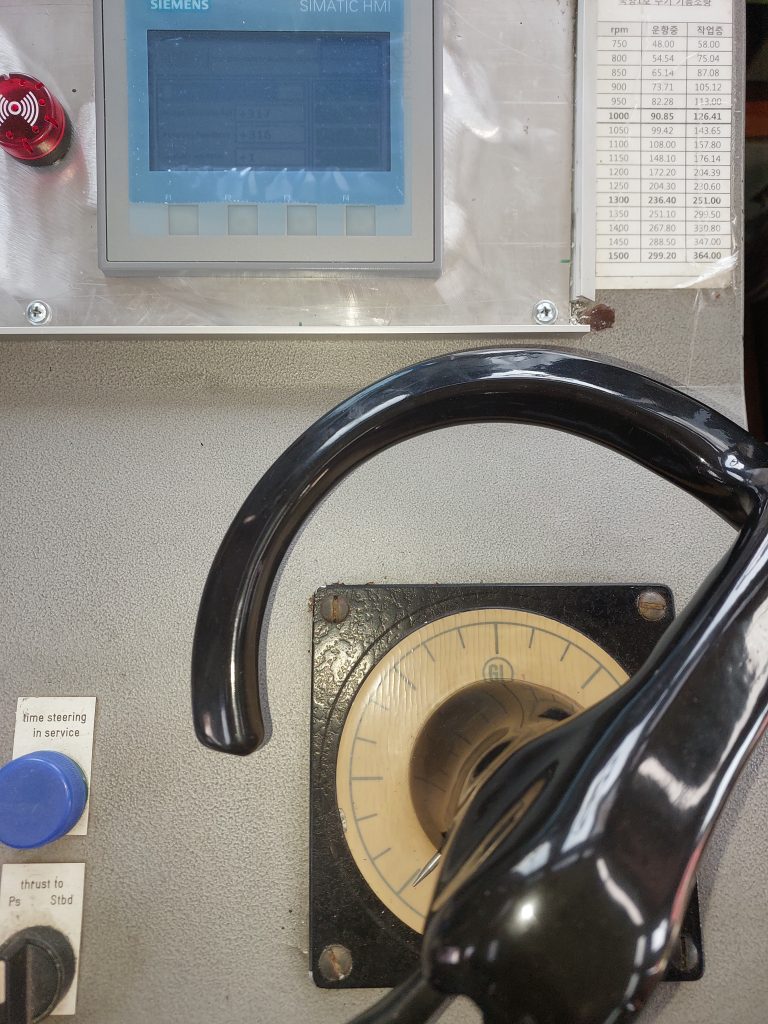

An intelligent Automations, in conjunction to the SIEMENS brand PLC has performed a cutting-edge-technology to control the SCHOTTEL Azimuth Stern Drive.
