Marine Power Management System (PMS-ZMZ-002581) for the MSB

Introduction: The Marine Switch-Board’s Power Management System (PMS-ZMZ-002581), is an intelligent & robust controller & safety system.
Actually, the PMS basis on the SIEMENS marine and class approved PLC, embedding marine-use strategies to the ZMZ-0025xx series software.
As a matter of fact, this marine product is a robust and intelligent system, to enable the automations, consisting of the background safety.
For sure, many back-ground safety, as long as the simultaneous monitoring, shall provide a confident operation to the staff.
Definitely, the PMS-ZMZ-002581 product, brings about automations over the marine switchboards to enable hassle-free operations.

Solely, our company’s marine power management system is aimed to upgrade the obsolete & out of order main switchgears.
Entirely, the PMS will perform, by means of the reliable and wise marine use strategies, those’re embedding as the ZMZ series automations software.
Beyond any doubt, this product software is implementing over the marine approved SIEMENS platform.
Exclusively, the features are consisting of the ” Automatic-Synchronization”, “Auto-Load-Sharing” & “Reverse Power Protection”.
Although, a wide range of the back-ground operational safeties over the switchboard & generators are included.
Incontestably, an important & class-concerned safety: “Reverse Power Protection” achieves, here through monitoring the directions of the currents of the GENSET.

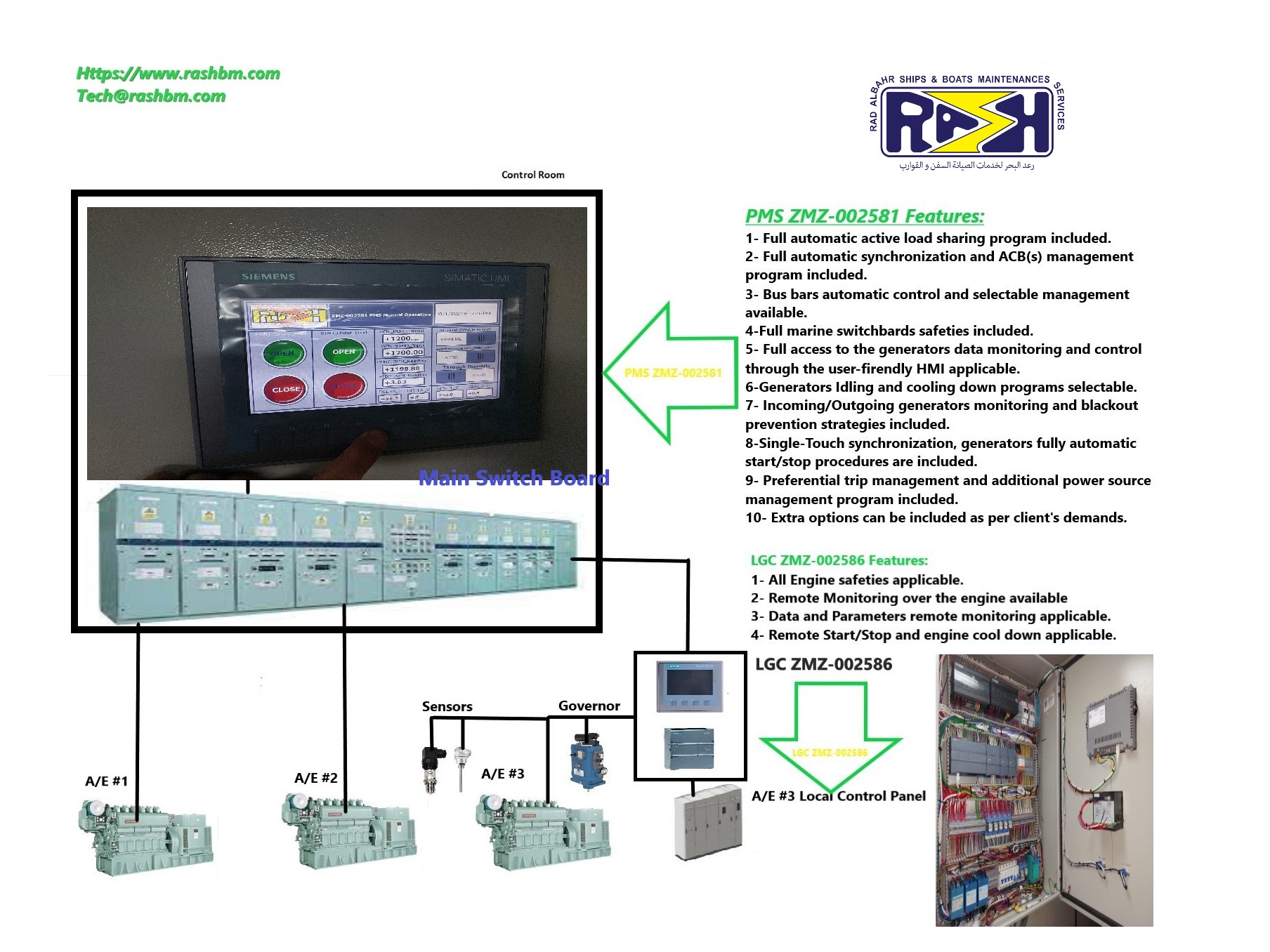

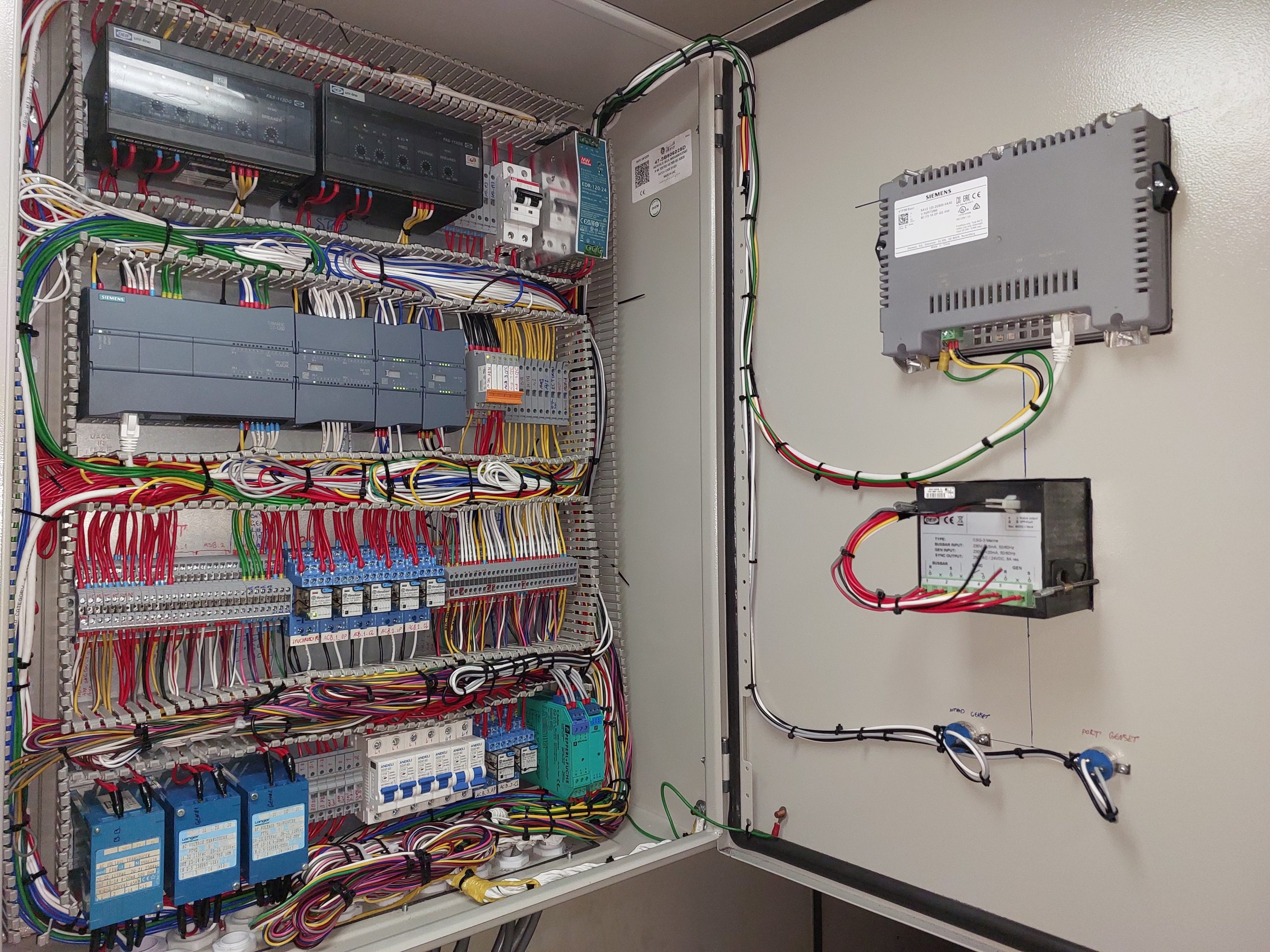

@RAShBM PMS-ZMZ-002581 central panel

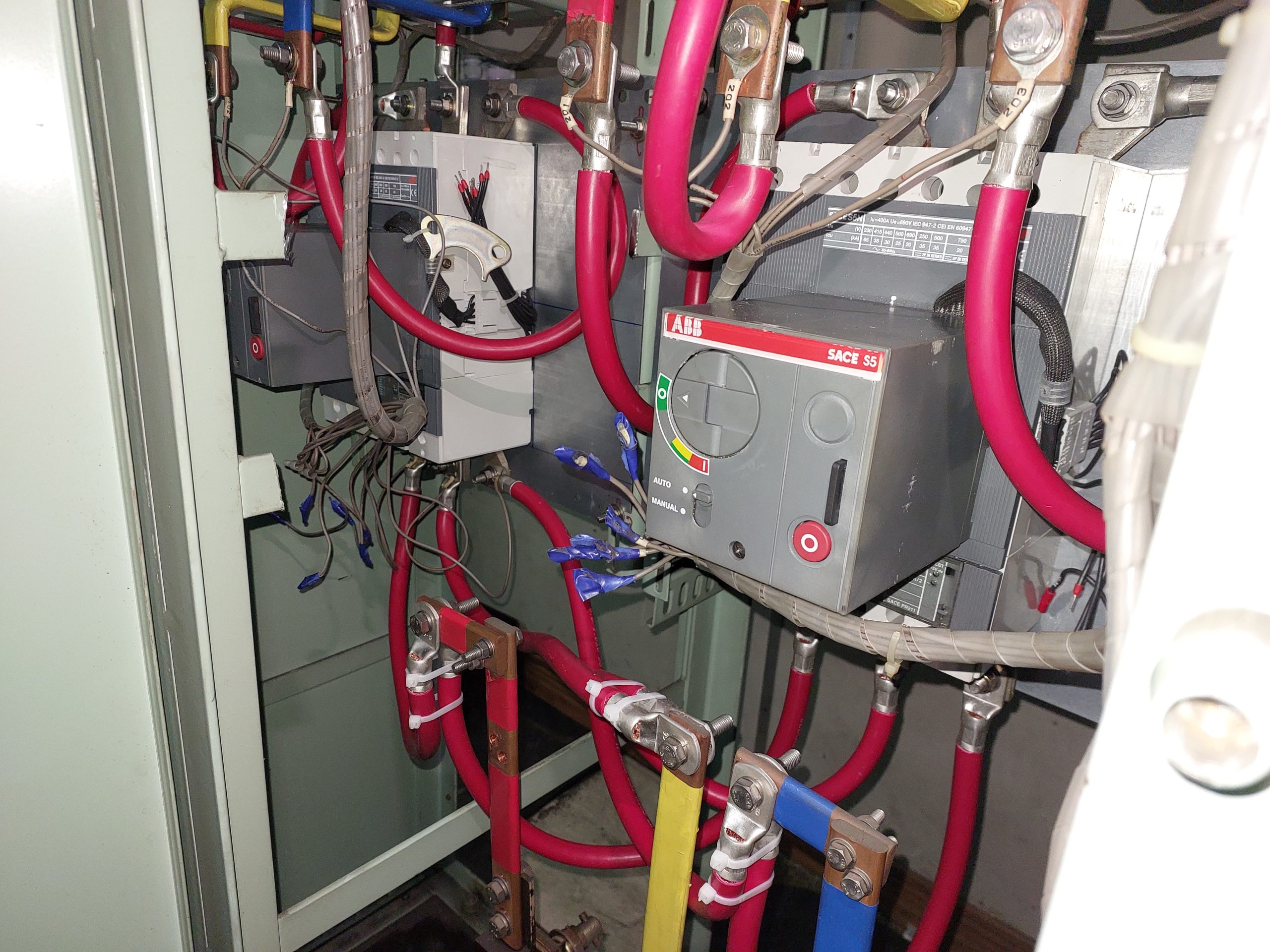

@RAShBM retrofitting motorized ACB(s) in a marine switchboard to establish automations

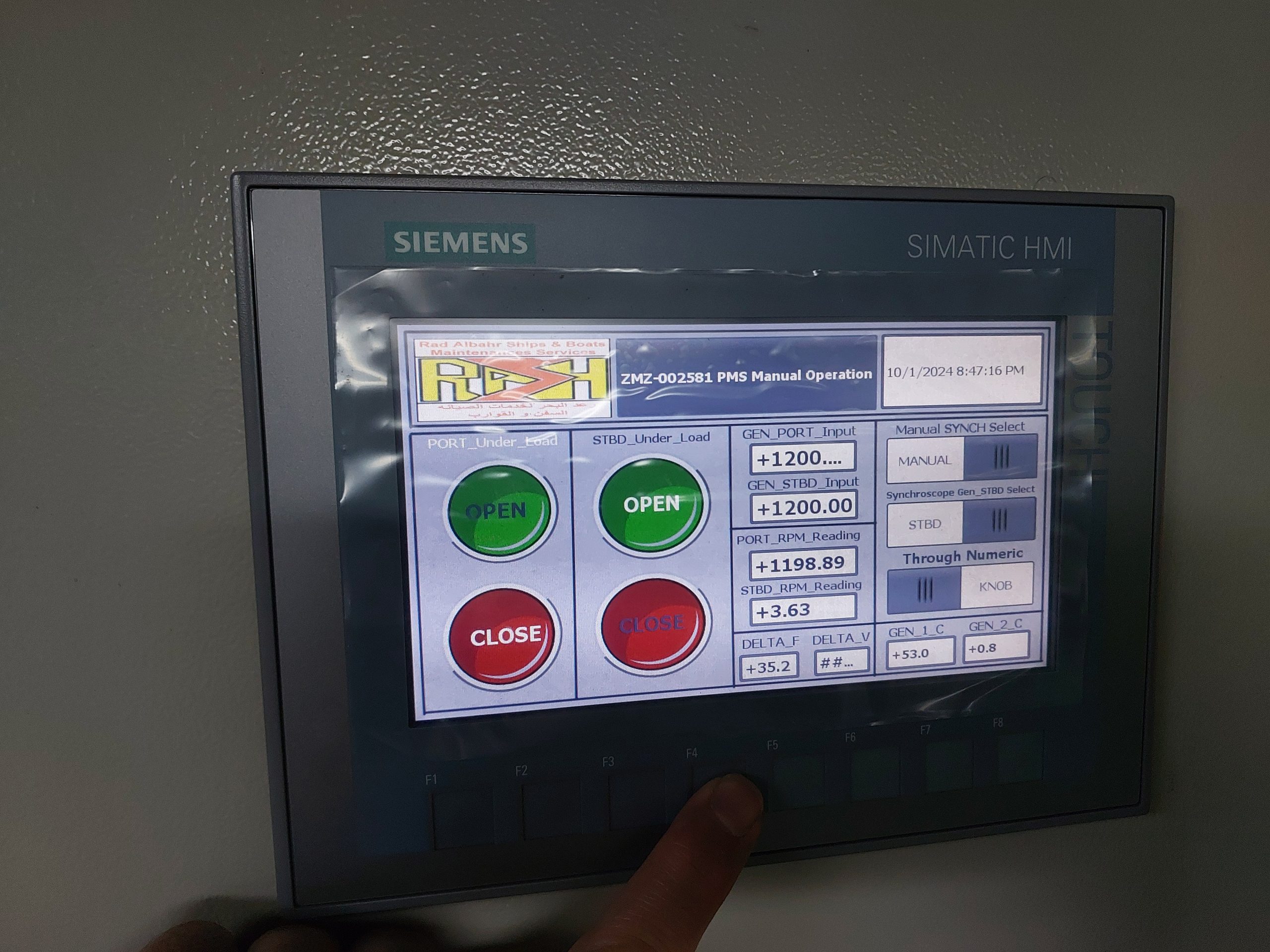

Our product includes one or more (as per owner request) Human Machine Interface (HMI) for interfacing to the operator.
As a matter of fact, the HMI, as the switchboard and generators parameters and conditions monitoring means, in the hierarchy, located on the middle layer.
Solely, the central PLC(s) positioned in the top layer of the schemed hierarchy, skillfully manipulating the control signals over the switchboard.
Actually, the measuring devices, transmitters & transducers to monitor the circuit breakers and generators are installing.
These measuring equipment are acquiring imperative data to monitor the overall process from several equipment.
The lowest layer in the hierarchy, as the system’s inputs/outputs consisting of data acquisition units, transducers, actuators and auxiliary control devices.
Exclusively, this product comprising the following parts:
“AUTO_SHARING DEVICE” (to makes the generators synchronized).
Assuredly, the Air Circuit Breakers (to achieve the power switching in between the bus bars, generators and consumers).
Positively, safety devices (i.e. the Siemens “SIPROTEC”) working in conjunction to each other and PLC monitors the automation process.
Apparently, the Voltage, Current & Phase transducers to establish the essential monitoring through the PLC, are hired.
Indubitably, an intelligent monitoring of the currents through the generators shall provide the “Reverse Power Protection”.

Merely, the PMS consists of the central marine-approved PLC, composing an intelligent software, embedding marine-use strategies.
Absolutely, the class-approved PLC, embedding the advanced marine strategies as the higher layer in the hierarchy.
Totally, this product together with other systems from other enhanced SIEMENS PROFINET network devices like the AMS & GENSET_SSU, are connecting to the SIEMENS network.
Certainly, there might be one or more (as per design demands) sets of HMI available as the monitoring station (s).
These HMI(s) will be located on the switchboard front panel door (as the interface to the operators) & other locations.
Surely, additional auxiliary protection devices like Siemens “SIPROTEC”, which sets the benchmark for protecting, automating, and monitoring the network, can be extended.
Undeniably, all concerned devices in the switchboard control and monitoring process will be connected to the central PLC(s) via the PROFINET data bus.
Incontrovertibly, the interface to the exterior systems and higher layer Networks also comprises SIEMENS PROFINET.
Obviously, the network-based control and monitoring systems the AMS ZMZ-002582 and the RCS/SSU ZMZ-002577/002579), can share data to the PMS.
