To achieve the company’s motto: “Innovations for Renovation” and to bring about retrofitted safeties for the Marine Boiler’s Burner Controller systems.

Up to what extent an intelligent marine controller & safety system is vital to a marine boiler’s safety?

We’ve been witnessing several casualties & failures through the lack of boiler’s automations.

Specifically through the water level automation systems, many failures has been observed.

Such disasters might be considered as a catastrophic situations, can be avoided by Marine Boiler Controller & Safety systems Retrofit projects onboard maritime vessels.

Supposed, you as an owner of a maritime vessel have owned an obsolete maritime vessel, containing an out of order boiler automations.

Such a disaster to the engineers & staff, leading to a catastrophic situation, making the engine room watchkeepers to continuously monitor the boiler’s water level & boiler’s steam pressure.

The water level maintain process to a marine boiler is playing an imperative role.

Any failure to such a time consuming maintenance (through the staff) shall lead to a catastrophic results like complete vessel overwhelming!

Just, like a malicious act of an anti-virus over any computer, lack of automations over the water level maintaining process to a marine boiler, despite of the disasters to the staff, shall lead in-turn to a long term damage to the smoke or water tubes inside the boiler, due to become continuously exposed to several stresses; such catastrophic situations can be eliminated by means of the Marine Boiler Controller & Safety systems Retrofit projects to upgrade safeties onboard the maritime vessels.

Mainly the engines are working on the HFO, makes the vessel fuel-economy.

Maintaining the steam pressure is another process, expecting from an automation system over any marine boiler.

Whilst any maritime vessel is sailing, both the above mentioned processes (water & steam Pressure maintaining) are combining together.

By means of an economizer & auxiliary boiler shall act as an water & steam drum or considering combined boiler types, simultaneous automations over whole process is expecting.

An obsolete automation system attended for a boiler onboard a 33,500 MT (DWT) general cargo vessel.

The Marine Boiler Controller & Safety systems Retrofit project under SIEMENS platform (BAS-ZMZ-002586) has been implemented.

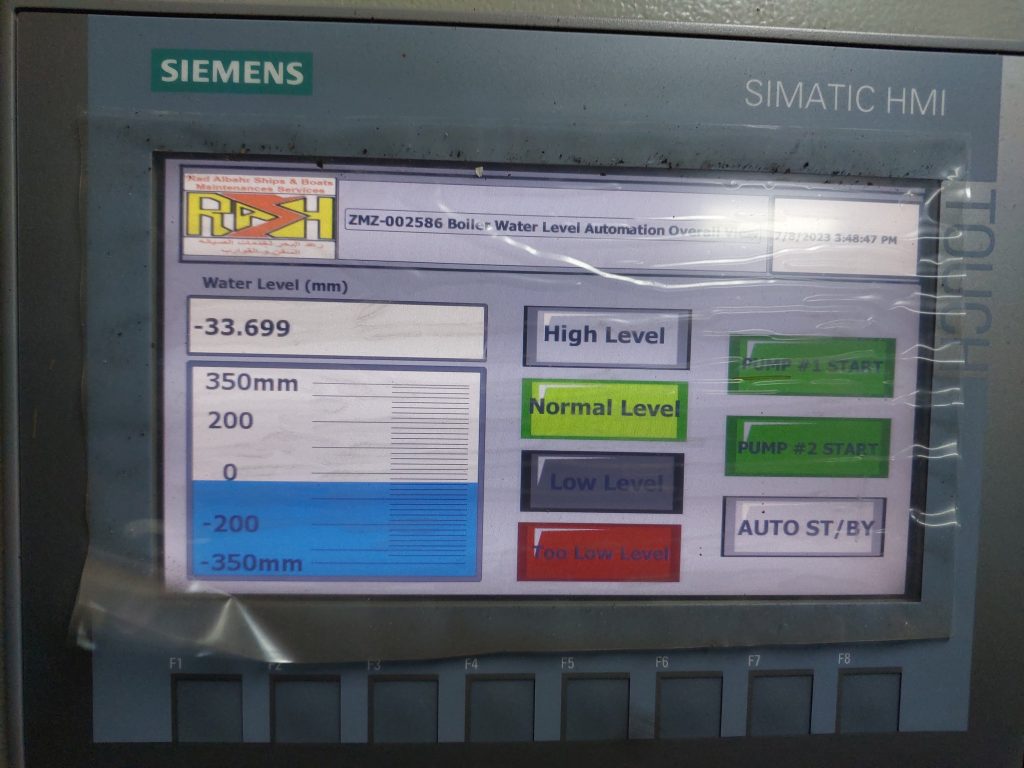

An specific water & steam level automation PLC designated to continuously monitor & maintain the level & pressure.

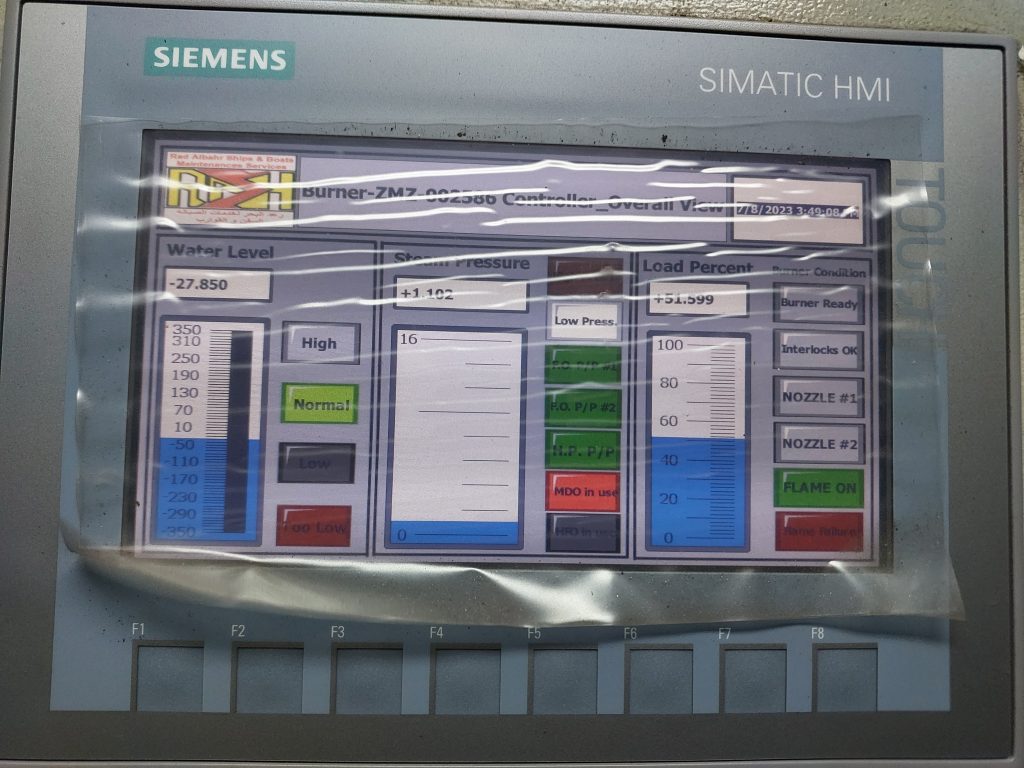

The entire system devices are communicating on the PROFINET to the burner’s automation PLC.

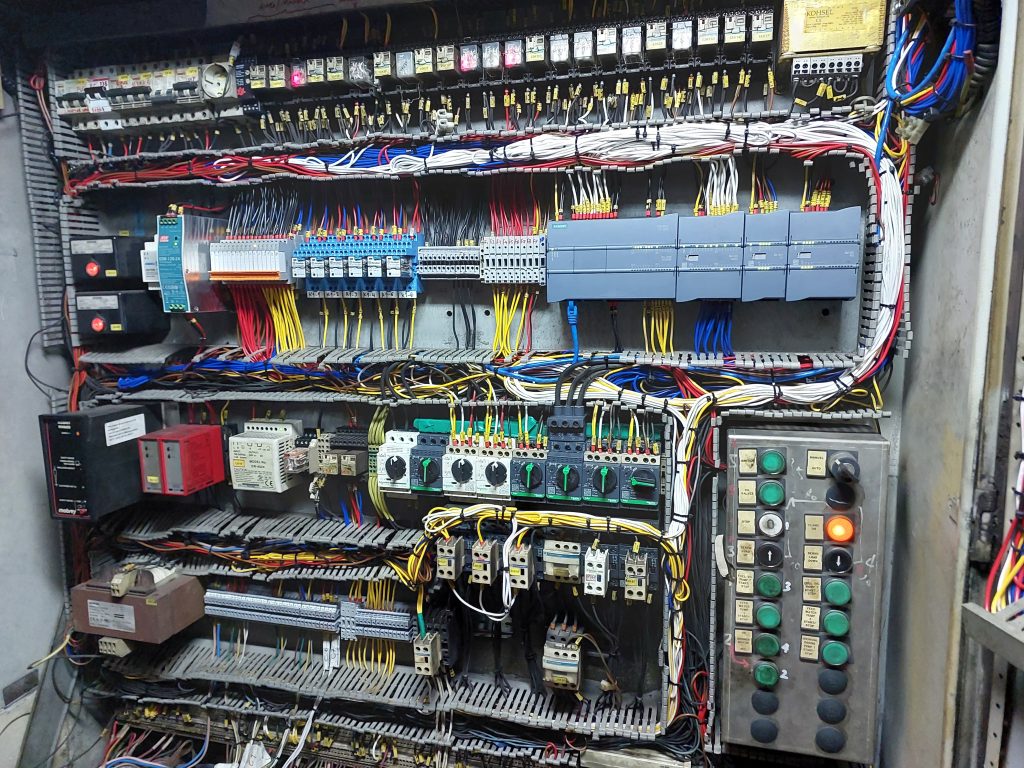

In the captioned project, we’ve retrofitted two set individual automation PLC (s) inside the obsolete control panels.

Entire project performed under supervision from RINA classification society, therefore relevant approvals achieved.

Marine approved type PLCs, hired to last against a harsh environment, resisting against vibration , heat and humidity.

The retrofitted system (RCS-ZMZ-002586) is basis over an robust platform from SIEMENS brand.

Considering minimum 55 centigrade degree of air temperature (adjacent to the boiler) & unfortunately no any cooling means!

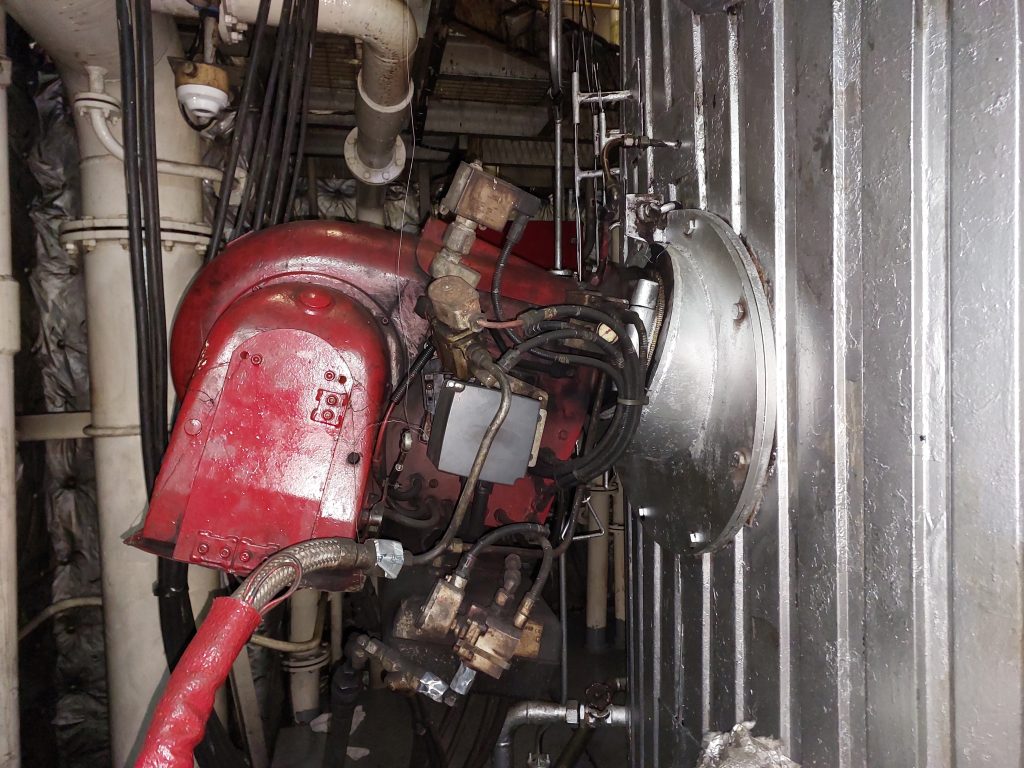

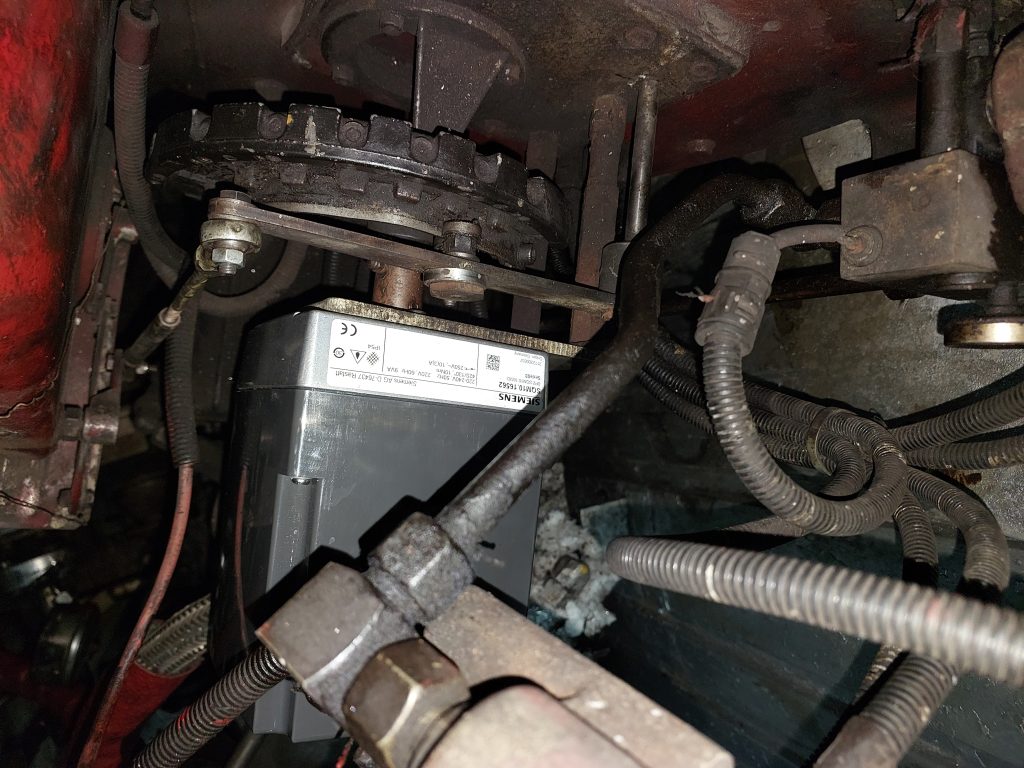

Marine Boiler Controller & Safety systems Retrofit project upgraded the Boiler’s burner’s analogue “WEISHAUPT” controller, which has been equipped with an analogue load-controller means to continuously monitor & control the intense of the flame to maintain the steam pressure.
Several safety strategies are being considered to the automations software.
